RENEW^TM MRL

The Renew MRL package combines the GLR25S2 and Pixel MRL controller. The GLR25S2 is a direct mechanical replacement for the MX10 & NMX11 rail mounted machines. The Pixel AC MRL from Elevator Controls is a complete traction controller solution designed to fit in smaller control spaces.

General Design Criteria:

• Speed: Up to 350fpm
• Capacity: Up to 2500#
• Roping: 2:1 SWT
• Drive Sheave Diameters: 420mm and 480mm
• Six (6) – 10mm or Eight (8) – 8mm ropes
• 208V and 480V
• Machine Weight: 1,056 lbs.
• Fully Vibration Isolated Design
• Heidenhain 2048 Encoder (ECN 1313)
• Low Machine and Brake Operational Audible Noise

CONVERSION KIT

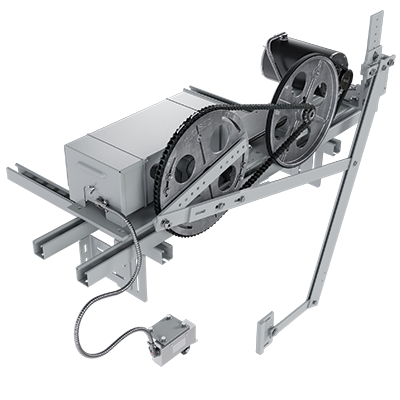

Dover/TK HD Harmonic Operators to GAL MOVFR-II
Pre-engineered to save you time and money. Everything needed to drive the door. Retain all other door equipment, including clutch and interlocks.

CONVERSION KIT
Schindler 3300 to GAL MONXT
Modernizes your linear operator while keeping existing Schindler 3300 door hangers, clutches, and interlocks. Everything needed to convert the operator to a GAL drive—all with just one part number to order

CONVERSION KIT
OTIS AT400/Black Belt to GAL MONXT – OMNI
Pre-engineered single operator is suitable for any door opening, any voltage, and any hand. Everything needed to hand-swap the old operator in minutes.

CONVERSION KIT
GAL MONXT – OMNI Telescopic Linear Operator
For side-slide and center-opening doors. Drives most existing conditions. Telescopic channel and adjustable belt allows a single operator to open a large range of door
openings. Keep existing door hangers
and locks.
